MODEL |
WDM - 6 Pass |
WDM - 9 Pass |
WDM - 12 Pass |

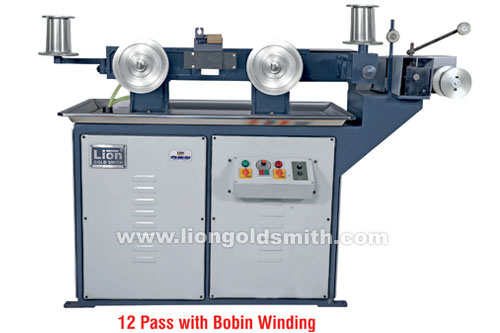

WDM - 12 Pass with Bobin |
Wire Dia. Reducation Capacity |
18 - 36 S.W.G. |
18 - 36 S.W.G. |
18 - 36 S.W.G. |
18 - 36 S.W.G. |
Power Supply |
1.5HP / 1.12kw - 1 Phase |
2HP / 1.12kw - 1 Phase |
3HP / 1.12kw - 3 Phase |
3HP / 1.12kw - 3 Phase |
Wire Drawing Speed |
22.8 (M/min.) |
25.0 (M/min.) |
28.0 (M/min.) |
28.0 (M/min.) |
Coolant Pump |
0.25HP / 0.18kw - 1 Phase |
0.25HP / 0.18kw - 1 Phase |
0.5HP / 0.38kw - 3 Phase |
0.5HP / 0.38kw - 3 Phase |
Coolant Tank Capacity |
7.5 Ltr. |
10 Ltr. |
15 Ltr. |
15 Ltr. |
Machine Dimension in cm. |
102 x 61 x 121 |
102 x 68 x 126 |
123 x 76 x 135 |
175 x 76 x 135 |
Machine Net. Weight |
289 Kg. |
315 Kg. |
400 Kg. |
430 Kg. |
Shipping Dimension in cm. |
114 x 73 x 133 |
114 x 80 x 138 |
135 x 88 x 147 |
190 x 88 x 147 |
Shipping Weight |
369 Kg. |
410 Kg. |
520 Kg. |
550 Kg. |
ALL ABOVE DAIMANTION ARE IN M.M.
