MODEL
MRM 001
MRM 002
MRM 003

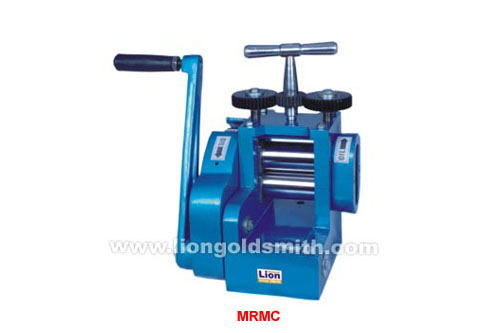

MRMC 001
MRMC 002
MRMC 003
Rolls Width x Diameter
76 x 41 (3"x1.6")
89 x 51 (3.5"x2")
101 x 51 (4"x2")
76 x 41 (3"x1.6")
89 x 51 (3.5"x2")
101 x 51 (4"x2")
Wire Grooves From -To
0.75 - 5.75
0.75 - 5.75
0.75 - 6.0
0.75 - 5.75
0.75 -5.75
0.75 - 6.0
Max. Sheet Width
28
36
38
28
36
38
Wire In Fully Grooved Roll
0.75 - 6.75
0.75 - 6.75
0.75 - 7.0
0.75 - 6.75
0.75 - 6.75
0.75 - 7
Max. Apertures Of Rolls
4
4
4
4
4
4
No. of Half Round Grooves
2
2
2
2
2
2
Ratio
3.15 / 1
3.15 / 1
3.15 / 1
3.15 / 1
3.15 / 1
3.15 / 1
Depth per rotation of staring
0.86
0.81
0.81
0.86
0.81
0.81
Machine Dimension (C.M)
22 x 19 x 30
23 x 19 x 32
25 x 20 x 33
23 x 20 x 30
24 x 20 x 32
26 x 21 x 33
Machine Net Weight
16.1 Kg.
18.3 Kg.
21.0 Kg.
17.3 Kg.
20.5 Kg.
22. 2 Kg.
Shipping Dimension (C.M)
28 x 28 x 28
30 x 30 x 30
30 x 30 x 30
30 x 30 x 30
30 x 30 x 30
31 x 31 x 30
Shipping Weight
17.8 Kg.
20 Kg.
23 Kg.
19.0 Kg.
22.2 Kg.
25 Kg.

ALL ABOVE DAIMANTION ARE IN M.M.

Due to continuous innovation & improvements, Specification is subject to change without notice.
