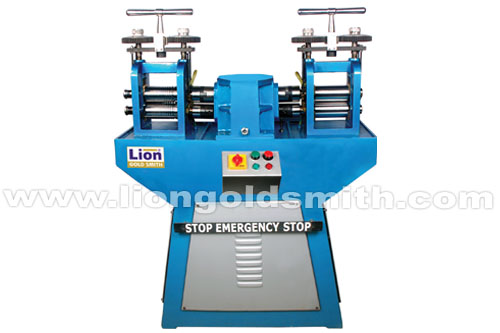

MODEL |
RMDH 001 |
RMDH 002 |
RMDH 003 |
Rolls Width x Diameter |
101 x 57 (4"x2.25") |
127 x 63.5 (5"x2.5") |
152 x 76 (6"x3") |
Wire Grooves From -To |
0.75 - 8 |
0.75 - 9 |
0.75 - 10 |
Max. Sheet Width can be Rolled |
60 |
80 |
100 |
Max. Apertures of Rolls |
25 |
31 |
35 |
No. of Half Round Grooves |
2 |
2 |
2 |
Max. Roller Speed |
7.57 (M/Min.) |
9.42 (M/Min.) |
11.66 (M/Min.) |
Depth per rotation of staring |
0.78 |
0.50 |
0.66 |
Emergency Brake |
Optional |
Optional |
Optional |
Auto Lubricating System |
Optional |
Optional |
Optional |
Power Supply |
1 HP, 0.75 Kw., 1 Phase |
1.50 HP, 1.1 Kw., 1 Phase |
2 HP, 1.5 Kw., 1 Phase |
Machine Dimension cm. |
85 x 34 x 117 |
97 x 42 x 125 |
107 x 51 x 132 |
Machine Net Weight |
209 Kg. |
285 Kg. |
365 Kg. |
Shipping Dimension cm. |
100 x 54 x 132 |
110 x 70 x 135 |
120 x 74 x 135 |
Shipping Weight |
270 Kg. |
345 Kg. |
450 Kg. |
ALL ABOVE DAIMANTION ARE IN M.M.
RMDH 001, 2 & 3 Also available in 3 Phase 440 volt Power Suplly.
