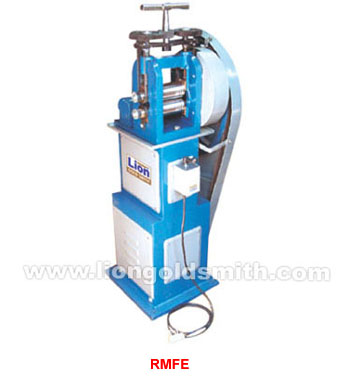

MODEL |
RMFE 001 |
RMFE 002 |
RMFE003 |
Rolls Width x Diameter |
101 x 57 (4"x2.25") |
127 x 63.5 (5"x2.5") |
152 x 76 (6"x3") |
Operation System |
Motorized |
Motorized |
Motorized |
Wire Grooves From - To |
0.75 - 7 |
0.75 - 9 |
0.75 - 10 |
Max. Sheet Width |
37 |
48 |
57 |
Wires in Fully Grooved Rolls (Optional) |
0.75 - 8 |
0.75 - 10 |
0.75 - 11 |
Max. Apertures Of Rolls |
6 |
6 |
6 |
No. of Half Round Grooves |
2 |
2 |
2 |
Max. Roller Speed |
7.57 (M/Min.) |
9.42 (M/Min.) |
11.66 (M/Min.) |
Depth per rotation of staring |
0.78 |
0.50 |
0.66 |
Power Supply |
1 HP/0.75Kw. 1Phase |
1.5 HP/1.1Kw. 1Phase |
2 HP/1.5Kw. 1Phase |
Machine Dimension (C.M) |
38 x 48 x 117 |
40 x 58 x 120 |
45 x 55 x 125 |
Machine Net. Weight |
108.00 Kg. |
134.4 Kg. |
160.00 Kg. |
Shipping Dimension (C.M) |
65 x 54 x 132 |
65 x 70 x 135 |
59 x 74 x 135 |
Shipping Weight |
148 Kg. |
170 Kg. |
210 Kg. |
ALL ABOVE DAIMANTION ARE IN M.M.
Due to continuous innovation & improvements, Specification is subject to change without notice.
Model RMFE 001, 002 & 003 are also available with double gear.

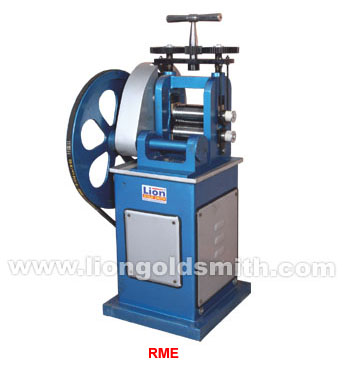

Model RME available in 4", 5", & 6" with Electric Motor in Half Stand.
