MODEL
MRMC 001
MRMC 002

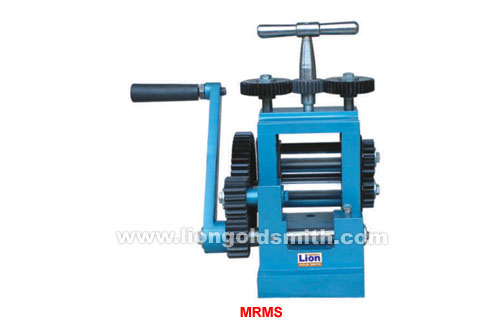

MRMS 001
MRGB 001
MRGB 002
MRGB003
Rolls Width x Diameter
76 x 41
89 x 51
76 x 41
76 x 41
89 x 51
101 x 51
Wire Grooves From -To
0.75 - 5.75
0.75 - 5.75
0.75 - 5.75
0.75 - 5.75
0.75 -5.75
0.75 - 6.0
Max. Sheet Width
28
36
28
28
36
37
Wire In Fully Grooved Roll
0.75 - 6.75
0.75 - 6.75
0.75 - 6.75
0.75 - 6.75
0.75 - 6.75
0.75 - 7
Max. Apertures Of Rolls
4
4
4
4
4
4
No. of Half Round Grooves
2
2
2
2
2
2
Ratio
3.15 / 1
3.15 / 1
3.15 / 1
4 / 1
4 / 1
4 / 1
Depth per rotation of staring
0.86
0.81
0.86
0.86
0.81
0.76
Machine Dimension (C.M)
20.5 x 23 x 25.5
23 x 23 x28
27 x 30 x 30
26 x 10 x 27
27 x 11 x 36
35 x 16 x 36
Machine Net Weight
17.3 Kg.
23.5 Kg.
17.0 Kg.
15.8 Kg.
20.0 Kg.
20. 2 Kg.
Shipping Dimension (C.M)
30 x 30 x 32
32 x 32 x 35
30 x 30 x 32
31 x 15 x 28
33 x 16 x 36
35 x 16 x 36
Shipping Weight
22.5 Kg.
26 Kg.
22 Kg.
18.0 Kg.
23.0 KG.
23.5 Kg.

ALL ABOVE DAIMANTION ARE IN M.M.

Due to continuous innovation & improvements, Specification is subject to change without notice.
